Dektite Premium Black EPDM
Black EPDM for use in a temperature range of -50°C to 115°C (150°C Intermittently)
Applications:
For waterproofing metal, fibre cement, polycarbonate, and plastic roof sheeting penetrations such as water pipes; vent pipes; flues; electrical cables; antennas and ducting
Six different sizes of Dektite premium flashings cover a pipe diameter range from 0 – 508mm
DFE100BS Dektite EPDM Solar Pipe & Cable Flashing
R162
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE100BS |
0 – 35mm |
100mm X 100mm |

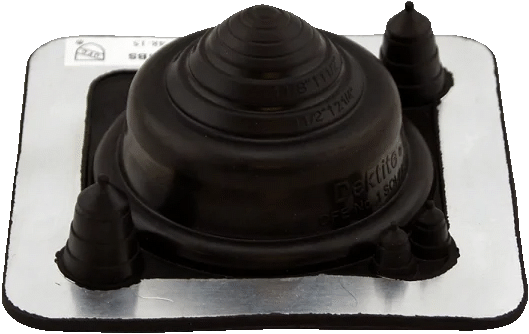

DFE101BS Dektite EPDM Pipe Flashing
R213
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE101BS |
5 – 55mm |
139mm X 139mm |

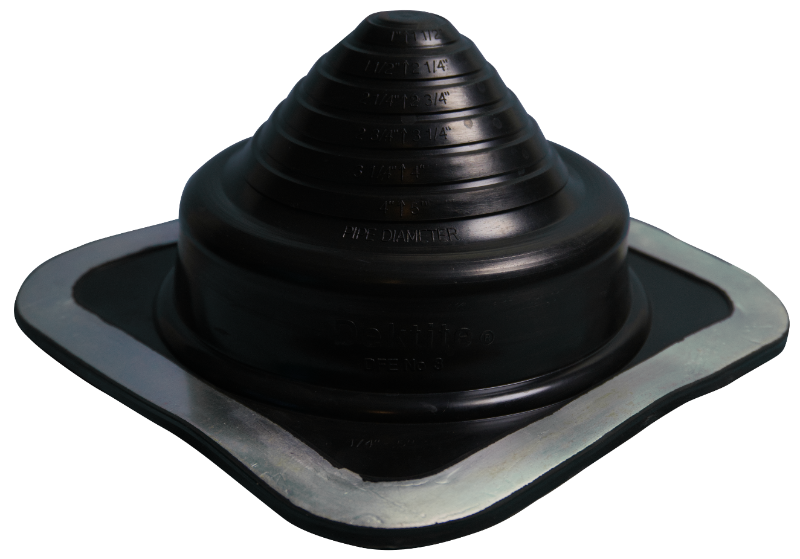

DFE103B Dektite EPDM Pipe Flashing
R304
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE103B |
5 – 127mm |
221mm X 221mm |
DFE104B Dektite EPDM Pipe Flashing
R372
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE104B |
75 – 175mm |
280mm X 280mm |
DFE107B Dektite EPDM Pipe Flashing
R925
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE107B |
150 – 300mm |
456mm X 456mm |
DFE109B Dektite EPDM Pipe Flashing
R1 362
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE109B |
230 – 508mm |
681mm X 681mm |

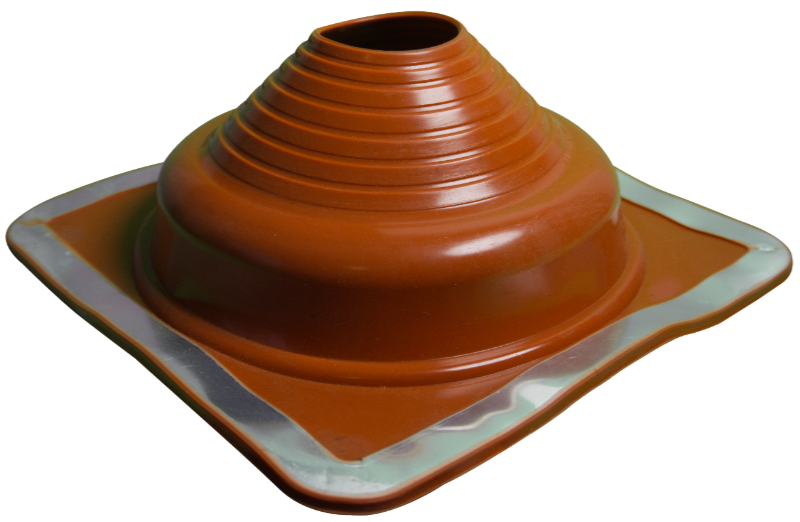

Dektite Premium Red Silicone
Red silicone for use in a temperature range of -60°C to 200°C (250°C Intermittently)
Applications:
For waterproofing metal and fibre cement roof sheeting penetrations with high temperatures such as fireplace and indoor braai flues; industrial chimneys etc.
Five different sizes of Dektite red silicone premium flashings cover a pipe diameter range from 5 – 508mm
DFE201RES Dektite Silicone Solar Pipe & Cable Flashing - RED
R180
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE201RES |
5 – 55mm |
139mm X 139mm |
DFE203RE Dektite Silicone Pipe Flashing - RED
R377
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE203RE |
5 – 127mm |
221mm X 221mm |
DFE204RE Dektite Silicone Pipe Flashing - RED
R486
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE204RE |
75 – 175mm |
280mm X 280mm |
DFE207RE Dektite Silicone Pipe Flashing - RED
R1 028
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE207RE |
150 – 300mm |
456mm X 456mm |
DFE209RE Dektite Silicone Pipe Flashing - RED
R1 891
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE209RE |
230 – 508mm |
681mm X 681mm |
Dektite Retrofit Black EPDM
Black EPDM for use in a temperature range of -50°C to 115°C (150°C Intermittently)
Applications:
The wrap-around Retrofit flashing can be used on very high penetrations where it would be difficult to pull the flashing over the top of the penetration (High chimneys, poles and pipes)
Used on pipes that with cowls or penetrations that have larger diameters at the top in relation to the point of penetration through the roof sheeting
Four different sizes of Dektite retrofit flashings cover a pipe diameter range from 20 – 425mm

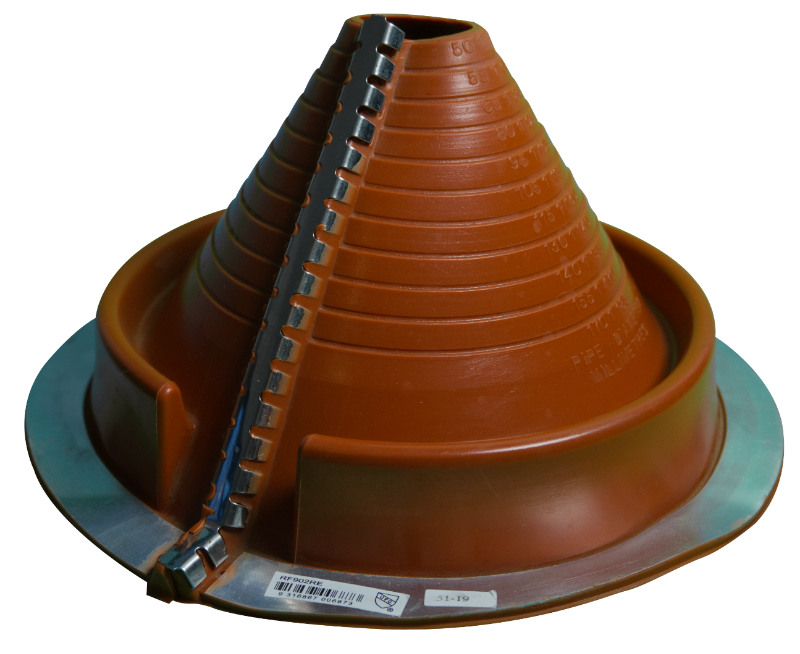

Dektite Retrofit Red Silicone
2.2 Red silicone for use in a temperature range of -60°C to 200°C (250°C Intermittently)
Applications:
For waterproofing metal and fibre cement roof sheeting penetrations with high temperatures such as fireplace and indoor braai flues; industrial chimneys etc.
Three different sizes of Dektite red silicone retrofit flashings cover a pipe diameter range from 50 – 425mm

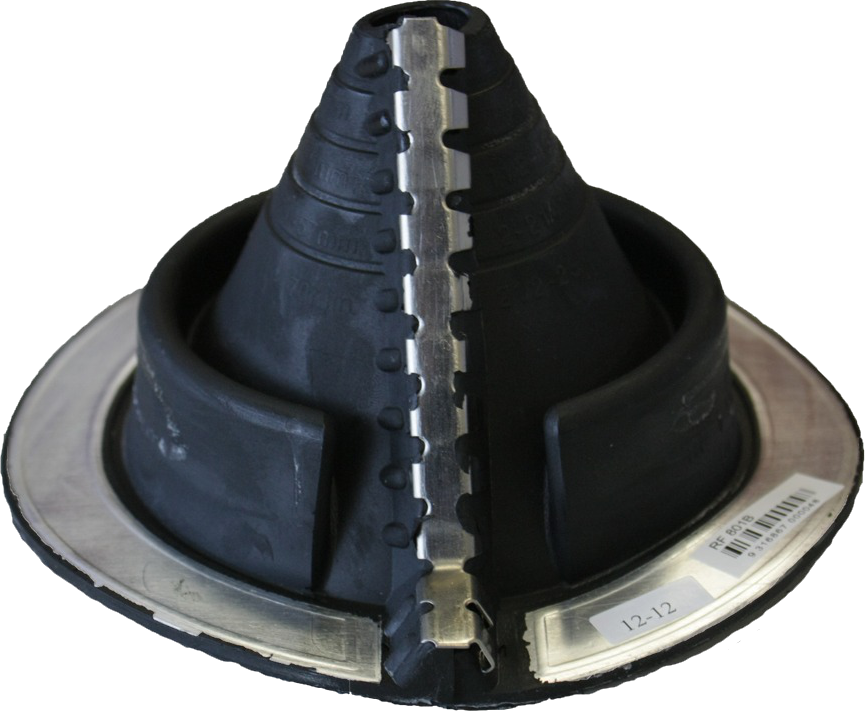

RF801B Dektite EPDM Retrofit Pipe Flashing
R338
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
RF801B |
20 – 70mm |
160mm |
RF802B Dektite EPDM Retrofit Pipe Flashing
R676
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
RF802B |
50 – 185mm |
273mm |
RF803B Dektite EPDM Retrofit Pipe Flashing
R1 032
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
RF803B |
85 – 255mm |
369mm |
Dektite Solar Flashing EPDM
Black EPDM for use in a temperature range of -50°C to 115°C (150°C Intermittently)
Applications:
For waterproofing metal, fibre cement, polycarbonate and plastic roof sheeting penetrations such as solar geyser water pipes, antennas, and electrical cables for solar panels
Five Dektite solar flashings options are available for waterproofing penetrations such as solar geyser water pipes and cables; PV panel cables through metal and tiled roofs; antennas etc.
DFE100BS Dektite EPDM Solar & Cable Flashing
R162
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE100BS |
0 – 35mm |
100mm X 100mm |

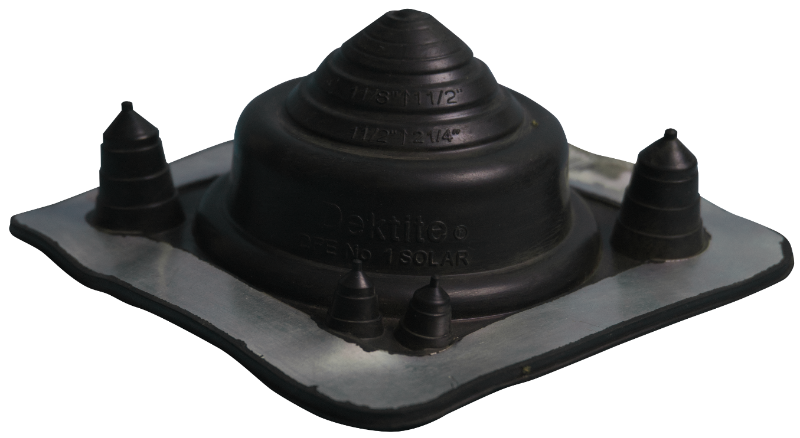

DFE101BS Dektite EPDM Solar Pipe & Cable Flashing
R213
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE101BS |
5 – 55mm |
139mm X 139mm |
DFE101BM Dektite EPDM Multicable Flashing
R156
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE101BM |
12 Ports 4 – 8mm |
139mm X 139mm |
SDA10MB Dektite aluminium EPDM Multicable Tile Flashing
R750
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
SDA10BM |
10 Ports 4 – 8mm |
490mm X 410mm |
Dektite solar flashing Red Silicone
Red silicone for use in a temperature range of -60°C to 200°C (250°C Intermittently)
Applications:
For waterproofing metal and fibre cement roof sheeting penetrations with high temperatures such as hot water pipes.
One Dektite solar flashing covers a pipe diameter range of 5 – 55mm
DFE201RES Dektite EPDM Solar Pipe & Cable Flashing-RED
R153
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DFE201RES |
5 – 55mm |
139mm X 139mm |
Dektite Aluminium Tile Flashing EPDM
Black EPDM for use in a temperature range of -50°C to 115°C (150°C Intermittently)
Applications:
For waterproofing roof tile and slate penetrations such as water pipes; vent pipes; flues; electrical cables; antennas and ducting
Five Dektite aluminium tile flashings cover a pipe diameter range of 12 – 300mm

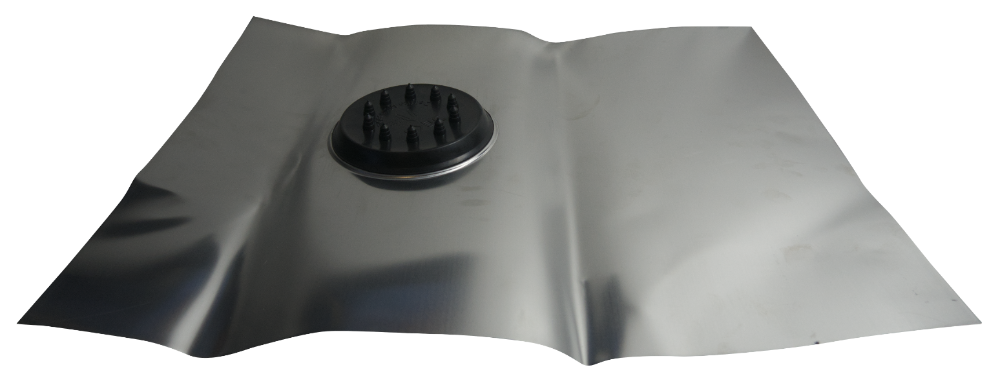

SDA10MB Dektite aluminium EPDM Multicable Tile Flashing
R750
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
SDA10BM |
10 Ports 4 – 8mm |
490mm X 410mm |
SDA100B Dektite Aluminium - EPDM Tile Flashing
R1 000
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
SDA100B |
12 – 70mm |
500mm X 600mm |
SDA101B Dektite Aluminium - EPDM Tile Flashing
R1 000
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
SDA101B |
50 – 170mm |
500mm X 600mm |

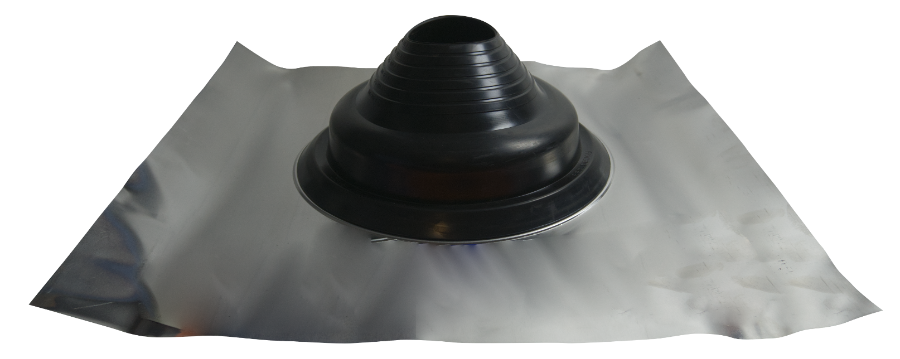

SDA102B Dektite Aluminium - EPDM Tile Flashing
R1 000
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
SDA102B |
110 – 200mm |
500mm X 600mm |
Dektite Aluminium Tile Flashing Silicone
Grey Silicone for use in a temperature range of -60°C to 200°c (250°C Intermittently)
Applications:
For waterproofing roof tile and slate penetrations such as water pipes; vent pipes flues
One Dektite aluminium tile flashings cover a pipe diameter range of 160 – 300mm

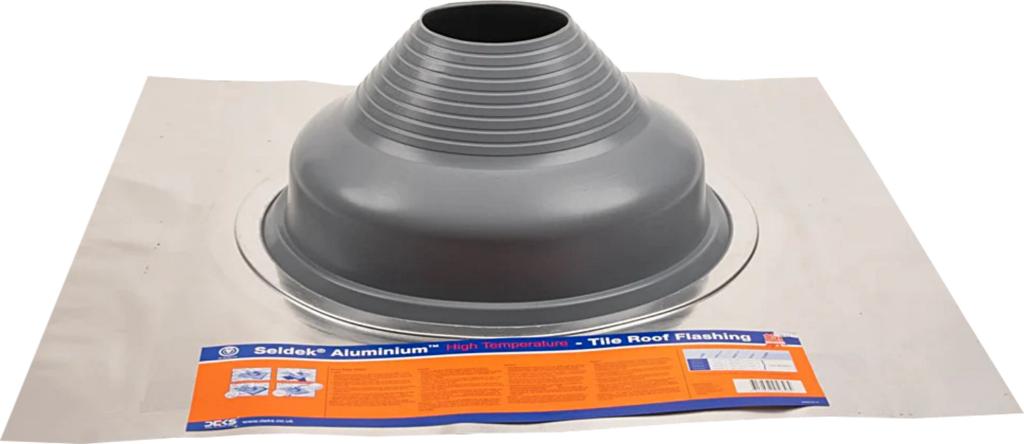

SDA203G Dektite aluminium Silicone Tile Flashing
R2 452
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
SDA100B |
160 – 300mm |
500mm X 600mm |
Dektite Strip Flashing Grey EPDM
Grey EPDM for use in a temperature range of -50°C to 115°C (150°C Intermittently)
Applications:

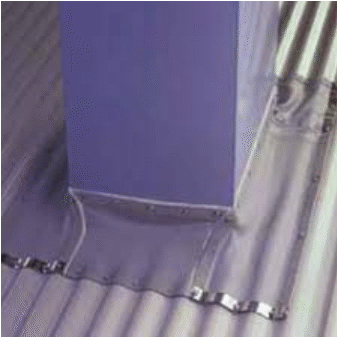

For waterproofing large penetrations that exceed the pipe diameters covered by other Dektites, odd-shaped penetrations, bullnoses and curved roofing profiles

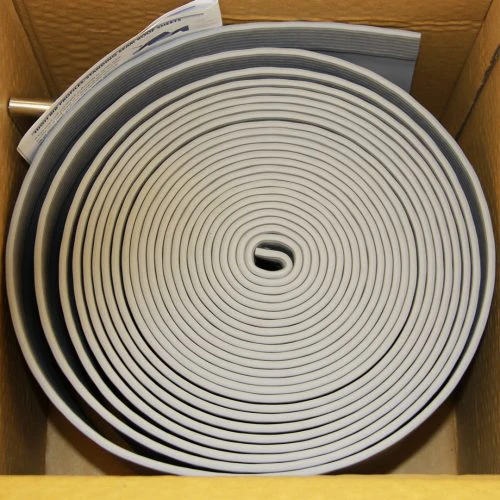

Dektite strip flashing comes in a 235mm wide X 10m roll
DS10-235 Deks Dekstrip Roof Flashing
R618
| Part No | Roll Size | Base size |
|---|---|---|
|
DS10-235 |
110 – 200mm |
600mm X 600mm |

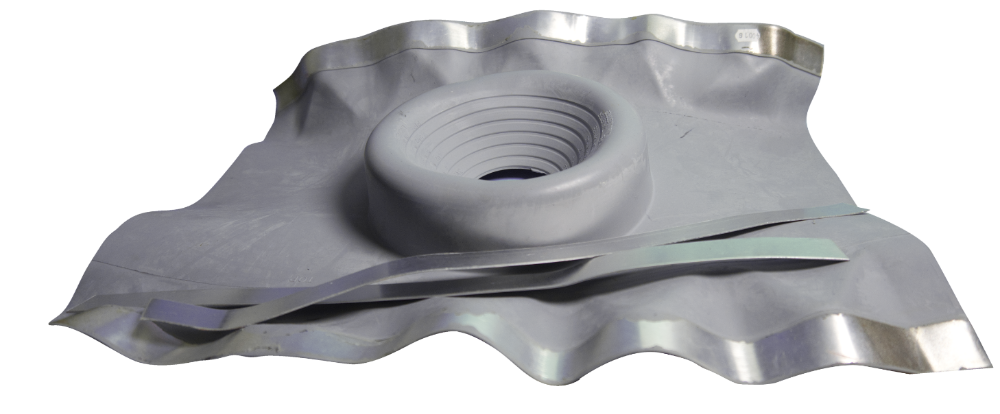

Dektite Soaker Flashing Grey EPDM
Grey EPDM for use in a temperature range of -50°C to 115°C (150°C Intermittently)
Applications:
For waterproofing low pitched or deep ribbed profiled metal, fibre cement, polycarbonate, and plastic roof sheeting penetrations such as water pipes; vent pipes; flues; electrical cables;
antennas and ducting. The larger base reduces and diverts rainwater backup
Two Dektite soaker flashings cover a pipe diameter range of 75 – 155mm and 235 – 425mm (Retrofit)
RFS4 Dektite Soaker Flashing EPDM - GREY
R2 215
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
RFS4 |
110 – 200mm |
600mm X 600mm |

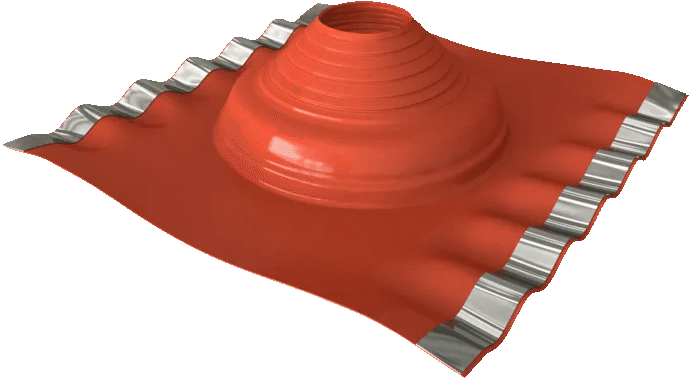

Dektite Soaker Flashing Silicone - RED
Red silicone for use in a temperature range of -60°C to 200°C (250°C Intermittently)
Applications:
For waterproofing low pitched or deep ribbed profiled metal and fibre cement penetrations with high temperatures such as fireplace and indoor braai flues, industrial chimneys etc.
The larger base reduces and diverts rainwater backup
One Dektite retrofit soaker flashing covers a pipe diameter range of 235 – 425mm
RFS4 Dektite Soaker Flashing Silicone - Red
R2 215
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
RFS24 |
110 – 200mm |
600mm X 600mm |
Black EPDM Dektite Flashing
Black EPDM Dektite flashing for use in a Temperature range of -50°C to 115°C (150°C Intermittently)
Applications:
We will need some copy to go in here.

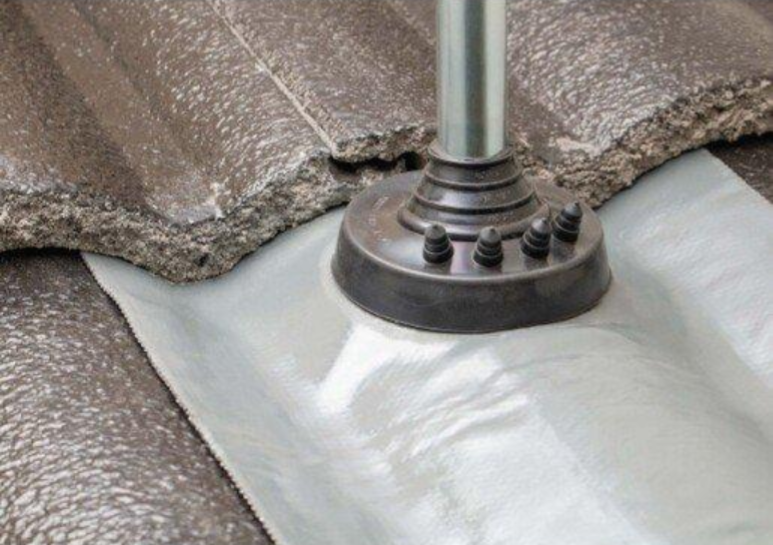

DRF100GB-A Dektite Rapid Flash Solar
R664
Black EPDM Dektite on grey EPDM self adhesive base
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DRF100GB-A |
6 – 50mm |
280mm X 450mm |
Grey Rapid Flash Self Adhesive Polymer Rubber Reinforced Base with Aluminium Mesh
Suitable for use on metal and tiled roofs Two Rapid Flash Dektites cover pipe diameters from 6 – 170mm
Applications:
We will need some copy to go in here.

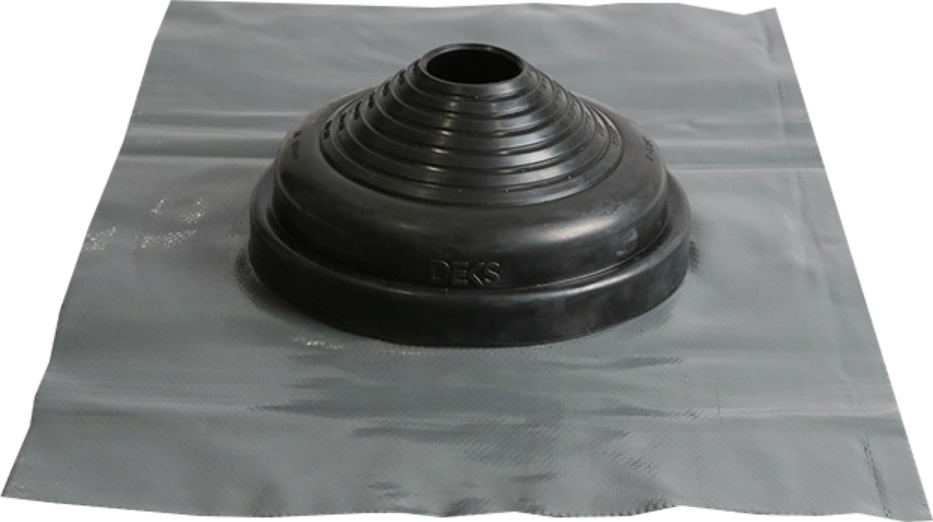

DRF103GB Dektite Rapid Flash
R934
Black EPDM Dektite on grey EPDM self adhesive base
| Part No | Pipe diameter range | Base size |
|---|---|---|
|
DRF103GB-A |
50 – 170mm |
370mm X 560mm |
